Properties:

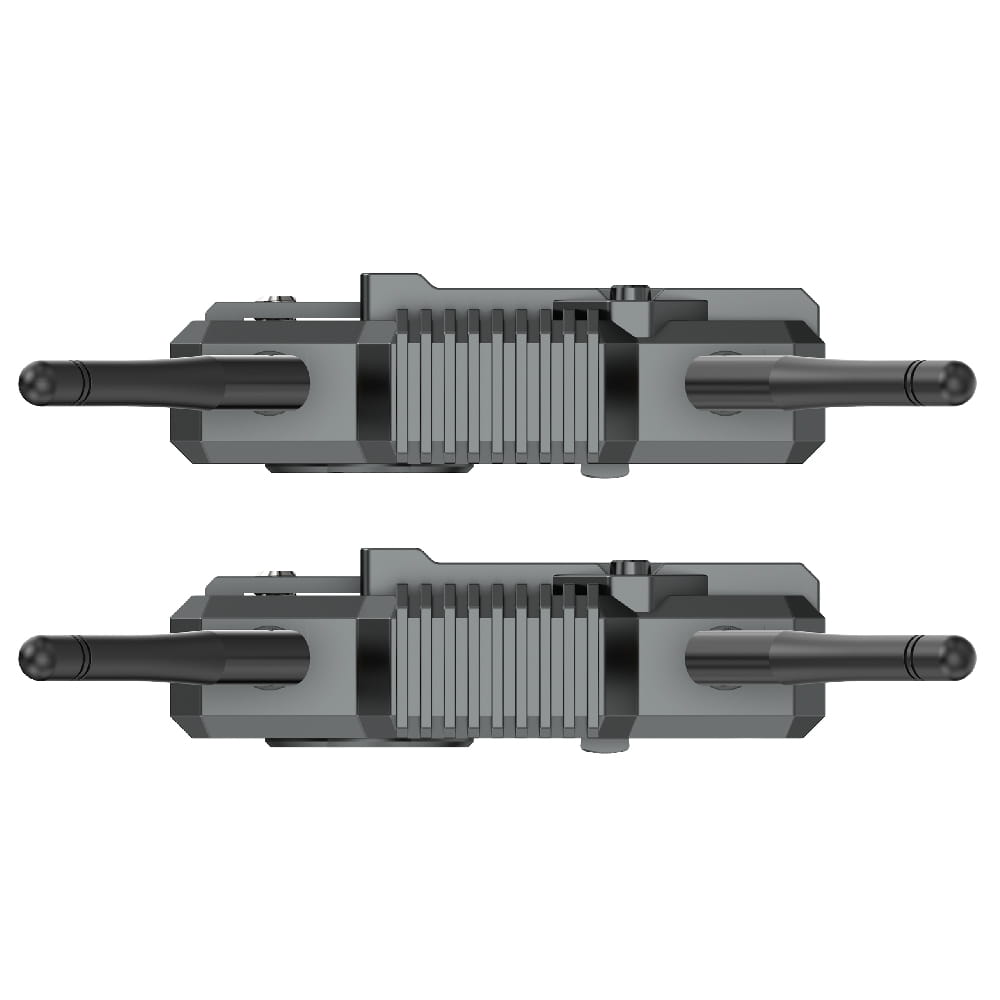

The Hollyland Mars 400S Pro II is an advanced video transmission system with SDI and HDMI interfaces, offering a transmission range of up to 150 meters in direct line of sight. It features a latency of just 70 ms and supports data rates of up to 12 Mbit/s. With the capability to monitor up to four devices, the Mars 400S Pro II provides flexible configurations, allowing transmission to two receivers, one receiver and two mobile devices, or directly to up to four mobile devices without a receiver. The system includes an intelligent fan design with three modes for optimal performance adjustment and is easily mounted on devices using the integrated 1/4"-thread accessory shoe.

Video transmission system with SDI and HDMI interfaces
Transmission range of up to 150 m
Latency of max. 70 ms
Data rates of up to 12 Mbit/s
Capable of monitoring up to four devices
Intelligent fan design
Integrated accessory shoe

Scope of Delivery:

1x Hollyland Mars 400S Pro II Transmitter
1x Hollyland Mars 400S Pro II Receiver
5x Antenna
1x DC Power Adapter

Technical Specifications:

	Sender (TX)	Receiver (RX)
Interfaces	1x HDMI input (Type A socket) 1x SDI input 2x antenna interface, RP-SMA connector 1x DC input 1x USB-C	HDMI output, type A (f) SDI output Antenna interface, RP-SMA (m) DC input USB-C
Power supply	via DC-Stromeingang: 6 - 16 V via USB-C: 5V / 2A via Akku: 6 - 16 V DC	via DC-Stromeingang: 6 - 16 V via USB-C: 5V / 2A via Akku: 6 - 16 V DC
Power consumption	< 11 W	< 7 W
Video input/output formats	HDMI 720p50/59.94/60 1080i50/59.94/60 1080p23.98/24/25/29.97/30 1080p50/59.94/60 SDI 1080p60/59.94/50 (Level A) 1080p60/59.94/50 (Level B) 1080i60/59.94/50 1080p30/29.97/25/24/23.98 1080psf24/23.98 1080psf30/29.97/25 720p60/59.94/50	HDMI 720p50/60 1080i50/60 1080p24/25/30 1080p50/60 SDI 1080p60/50 (Level A) 1080i60/50 1080p30/25/24 1080psf24 720p60/50
Frequency band	5 GHz	5 GHz
Transmission power	≤ 21+/-1.5 dBm	-
Receiver sensitivity	-	- 80 dBm
Transmission latency	70 ms	70 ms
Bandwidth	20 MHz	20 MHz
Dimensions	110 x 72 x 33.5 mm (without battery plate)	110 x 72 x 33.5 mm (without battery plate)
Weight	ca. 206 g	ca. 206 g
