Hawk-Woods VLM-FX9

Properties:

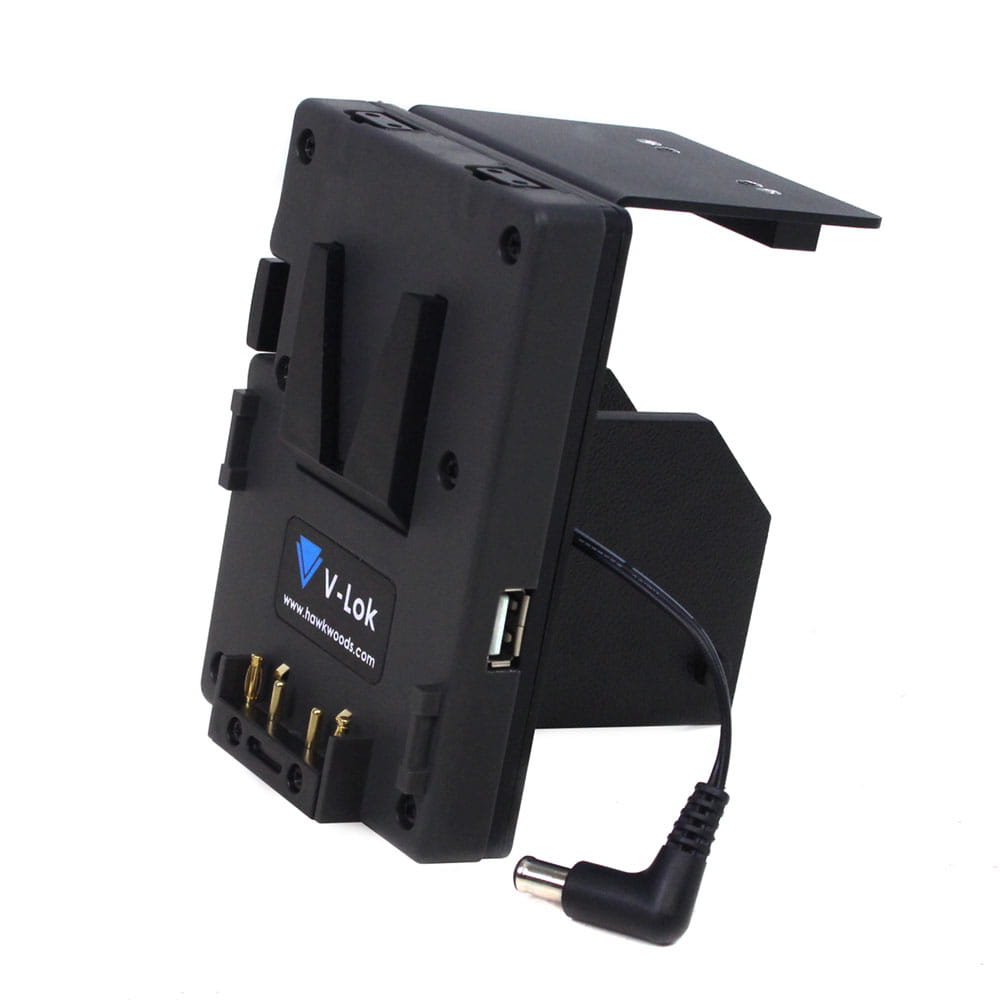

The VLM-FX9 is a V-mount battery plate, which was specially designed for the full-frame camera PXW-FX9 by Sony. The voltage of the attached battery is converted to 19.5 V and fed to the camera's power input via the attached barrel connector. In doing so, the BP-U battery compartment of the FX9 is occupied. Two additional D-Tap outputs and one USB-A output also allow accessories to be powered. Since the battery plate does not support a battery status indicator in the camera display, an LED warning light has been added which flashes from an output voltage of 11.5 V onward to inform the user that the battery needs to be replaced.

• Compatible with the full-frame camera PXW-FX9 by Sony
• LED warning light at low output voltage from 11.5 V
• Two additional D-Tap outputs and one USB-A output for powering accessories

Technical Specifications:

• Output Voltage: 19.5 V DC

Data Links:

• 1x Power supply DC via V-mount

• 1x Power supply DC via barrel connector (19.5 V)
• 2x Power supply DC via 2-pin D-Tap (11 - 17 V each)
• 1x Power supply DC via USB-A (5 V / 2 A)

General Product Information:

• Dimensions (W x H x D): 84 x 120 x 80 mm (3.3 x 4.72 x 3.15 in)
• Weight: 282 g (0.62 lb)
